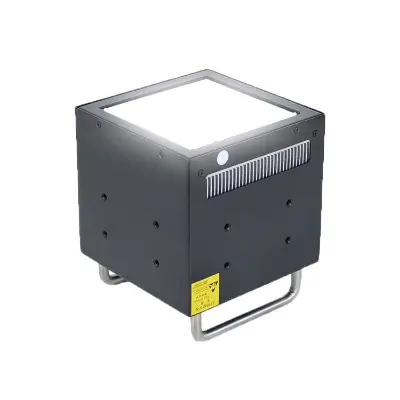

UVET’s UV LED Curing Light Source features a 100×100mm irradiation area and is equipped with fan cooling to ensure stable and efficient operation. It offers optional fixed wavelengths of 365nm, 385nm, 395nm, and 405nm, providing flexibility for various curing applications. This UV LED curing light source is widely used in electronic assembly, medical device bonding, optical component bonding, and across the optoelectronics industry, delivering consistent, high-quality UV curing for demanding industrial environments.
Specifications
| Part No. UVSS-144A | Wavelength 365nm, Intensity 2500mW/cm2 |
| Part No. UVSE-144A | Wavelength 385nm, Intensity 3000mW/cm2 |
| Part No. UVSN-144A | Wavelength 395nm, Intensity 3000mW/cm2 |
| Part No. UVSZ-144A | Wavelength 405nm, Intensity 3000mW/cm2 |
| Irradiation Area | 100x100mm |
| Heat Dissipation | Fan cooling |
-
Descriptions
Umthombo wokukhanya wokuphulukisa we-UV LED uletha ukukhishwa okuqinile, okufanayo kwe-UV endaweni ebanzi ngenkathi kugcinwa ukusebenza okuzinzile, okusebenzayo ngamandla. Idizayinelwe nge-100mm × ne-100mm irradiation zone, ilungele ukwelapha izindawo ezinkulu ezindaweni zokukhiqiza ezinemba kakhulu. Ngama-wavelengths akhethiwe we-365nm, 385nm, 395nm, no-405nm, lolu hlelo lunikeza ukuguquguquka okuhle kakhulu ukufanisa izidingo ezahlukahlukene zezinto ezibonakalayo.
Uhlelo lwayo oluhlanganisiwe lokupholisa i-fan luqinisekisa ukuzinza okushisayo kwesikhathi eside, ngisho nangaphansi kokusebenza okuqhubekayo. Lokhu kwenza iyunithi ilungele izinhlelo zokusebenza ezifunwayo ku-elekthronikhi, amadivayisi wezokwelapha, ama-optics, ne-optoelectronics. Noma ngabe isetshenziselwa ukubopha, ukumboza, noma ukufakwa uphawu, iletha imiphumela engaguquguquki ngokusetshenziswa kwamandla okuphansi nokukhiqizwa kokushisa okuncane.
Ngenxa yomklamo wayo ohlangene, we-modular, uhlelo lusekela ukusetshenziswa okuzimele nokuhlanganiswa kumasethi amakhulu azenzakalelayo. Ivumelanisa kalula nemigqa yokukhiqiza emisha noma ekhona, okwenza kube yisisombululo esithembekile futhi esinamandla sokuphulukisa i-UV.
Izici
- Ukupholisa kwe-fan: Igcina ukusebenza kuzinzile futhi kuvimbele ukushisa ngokweqile ngesikhathi sokusetshenziswa kwesikhathi eside
- Ukusebenzisa uhlelo lokusebenza kulula: Isikhombimsebenzisi esilula sokuzulazula esifinyeleleka ngisho nakubasebenzisi bokuqala
- Idizayini eguquguqukayo: Ingasebenza yodwa noma ngaphakathi kwezinhlelo ezinkulu zokuphulukisa ezizenzakalelayo
Kungani ukhetha umthombo wokukhanya we-UV LED?
Lolu hlelo lokuphulukisa luhlanganisa ukumbozwa kwendawo ebanzi nokukhishwa kwe-UV okuthembekile, okuphindaphindiwe. Indawo yokuphulukisa eyi-100mm × ne-100mm ivumela indawo engaphezulu ukuthi iphathwe kumjikelezo ngamunye, ukunciphisa isikhathi sokukhiqiza nokwandisa ukudluliswa. Kubaluleke kakhulu ezinqubweni ezifana nomhlangano wemodyuli yokubonisa isibonakaliso, ukubopha ibhodi lesifunda, kanye nokuphulukiswa kwengxenye ye-optical.
Ngezinketho ezine ze-wavelength ezitholakalayo, uhlelo luqinisekisa ukuhambisana nezinhlobonhlobo zokunamathisela okusebenzayo kwe-UV, ukumboza, nama-resins. Lokhu kuguquguquka kwe-wavelength kuvumela abasebenzisi ukuthi bathuthukise izimo zokuphulukisa izinto ezahlukahlukene, ukuthuthukisa amandla esibopho kanye nekhwalithi yenqubo.
Ukusetshenziswa kobuchwepheshe be-LED kunikeza izinzuzo eziningana kunezibani zendabuko ze-UV. Umthombo wokukhanya uvula futhi ucime ngokushesha, ukuqeda isidingo sezikhathi zokushisa. Isebenza emazingeni okushisa aphansi, inciphisa ubungozi bomonakalo ohlobene nokushisa ezintweni ezibucayi. Ngaphezu kwalokho, isebenzisa amandla amancane kakhulu, inciphisa izindleko zokusebenza futhi ifake isandla endaweni yokukhiqiza esimeme
.Yini ehlukanisa lolu hlelo?
- Indawo ekahle kakhulu ye-irradiation (100mm × 100mm): Ifanele ukwelapha izindawo ezinkulu ngempumelelo
- Izinketho eziningi ongazikhetha: Ama-Wavelengths we-365nm, 385nm, 395nm, no-405nm amboza uhla olubanzi lwezicelo
- Izinzuzo zobuchwepheshe be-LED: Ukusebenza okusheshayo kokuvula / ukuvala, ukusebenza kahle kwamandla, nokukhishwa okuphansi kokushisa
- Izicelo eziningi: Ilungele umhlangano we-elekthronikhi, ukubopha kwezokwelapha, ukukhiqizwa kwe-optical, nemikhakha ehlobene
Idizayinelwe ukusetshenziswa kwevolumu ephezulu, imithombo yokuphulukisa ye-UV LED iyisixazululo esithembekile sokuphulukiswa okusheshayo, okunembile nokuphindaphindiwe.
-
FAQs
Q1: What is a UV LED Curing Light Source used for?
A: A UV LED Curing Light Source is used to initiate rapid curing of UV-sensitive adhesives, coatings, and inks in applications such as electronics manufacturing, medical device assembly, printing, and optical bonding.Q2: What are the advantages of a UV LED Curing Light Source compared to conventional UV lamps?
A: It offers lower heat emission, longer operational life, instant on/off functionality, energy efficiency, and is mercury-free, making it safer and more cost-effective.Q3: What wavelengths are available for the UV LED Curing Light Source?
A: Standard options include 365 nm, 385 nm, 395 nm, and 405 nm, with wavelength selection based on material requirements and desired curing performance.Q4: Is the UV LED Curing Light Source suitable for integration into automated systems?
A: Yes, it supports integration with industrial automation through PLC interfaces, digital I/O, and programmable controls for seamless operation in production lines.Q5: What maintenance is required for the UV LED Curing Light Source?
A: Maintenance is minimal and includes periodic cleaning of optical components, cooling system checks, and routine output monitoring to ensure curing consistency.
